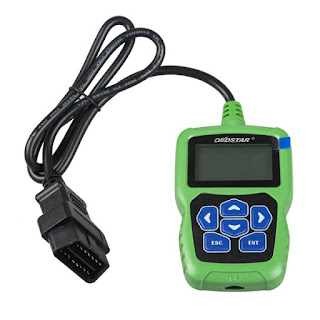

2017 Immobilizer(G) Reset Tool (OBDSTAR F101)

OBDSTAR Technology company has publish the Toyota Immobilizer(G) Reset Tool-OBDSTAR F101

What will OBDSTAR F101 do ?
1. Support  4D(67,68) chip immobilizer reset(All keys lost).
2. Support 72 chip(WITH G,EUROPE) immobilizer reset(All keys lost).American TOYOTA with G key Reset will upgrade soon!
3. Support smart key reset before 2009(All keys lost).
4. Add/erase Keys for all of TOYOTA cars.
5. Add/erase smart keys for all of TOYOTA cars.
6. Add/erase remotes for most of TOYOTA cars.
7. No need to connect with computer, plug and play, automatic transfer.
8. No need to buy tokens.
9. One Key Upgrade

10. Have good man-machine interaction.

NO NEED TOKENS!!!

Software update

Free update for 1 year Via official website

Language：English

Package Includes:

1pc x   F101 main unit

1pc x   TF Card

Program Toyota RAV4 G Key All Key Lost by OBDSTAR X300 DP via OBDII

Newest OBDSTAR X300 DP tablet key programmer (diagnostic tool) comes with standard version and full version. Here i will teach you how to do all key lost for 2013 toyota RAV4 with G via OBDII.

Device: OBDSTAR X300 DP  key programmer full version

Master key and sub (G) key

G chip key

Connect X300DP with your vehicel through OBDII Port

Click “Diag Program” on the main menu

Choose “Type 2(with G72)”

Choose “Remote immobilizer(All key lost)” option

Then switch ignitino off and click OK

Switch ignition on and click OK

X300 DP will prompt you to switch ignition off and remove the key, just doing that and click OK

It is configuring the system, wait…

Then insert the removed key and switch ignition on

It is configuring the system, wait…

Switch ignition off and remove the key again

Then you can program keys as the following steps within 120 seconds

Here we program 1 master key and 1sub key.

Click OK to begin program keys

Step1: Insert the first master key, turn on the ignitino and wait for 5 seconds…

Step2: insert the second sub key (the G chip key),turn on the ignition switch and wait for 5 seconds

Step3: turn on the ignition switch quickly for 5 times, the security light will turn off, the programming is finished.

Done! Program key for 2013 toyota RAV4 with G successfully!

http://blog.obdexpress.co.uk/2016/12/19/obdstar-x300-dp-do-all-key-lost-for-2013-toyota-rav4-with-g-via-obdii/

Change mileage on Audi A4 2005 by OBDSTAR VAG RPO

I have a Vag K+CAN Commander 5.5 and it doesn't work with my Audi A3 2004

It says "Odometer changed successfully " but no change.
On Golf 5, Passat 3C i tested and it worked but with my Audi doesn't work.

OBDSTAR VAG PRO changed my Audi A3 2004 successfully!It  corrects odometer mileage is very easy,mileage adjustment via OBD without cluster removed.

Like this :

Connect the vag pro device to the car via OBD

Then do as the screen prompts

Just follow the instruction on the screen to setup mileages.

Do you know ,I've used a lot of methods before use vag pro tool.

It’s my first time to change odometer, and an experienced fellow said for the first time i should make the ignition on and disconnect the battery for a few seconds..

But it doesn't work.
I disconnected the battery for 10 minutes (longer to wait this time) but no change.
I removed Instrument Cluster Fuse, again NO CHANGE

Finally, solved by OBDSTAR vag pro key programmer!

The vendor says it’s specialized for VAG group vehicles for basic diagnosis and some special functions (immo key programming, change km,SRS reset, oil reset...)

Vag pro for Audi Odometer Mileage v30.72:    Audi

   A3
2003-2006
2007-
A4
RB4 2002-2005
RB8 2006-2007
A4L
2008-2012
2013-
A5
2008-2012
2013-
A6
1998-2004
A6L
2004-2008
2009-
A8L
2003-2006
Q5
2008-2012
2013-
Q7
2006-2008
2009-
R8
R8 2007-
S5
2008-2012
2013-
S8
2007-
TT
TT 2007-

OBDSTAR VAG  PRO at obd2express :€94.99

http://www.obdexpress.co.uk/wholesale/obdsatar-vag-pro-key-programmer-new-models-odometer.html

http://www.mileageprogrammer.com/audi-odometer-changed-successfully/

OBDSTAR X300DP Program Keys for Hyundai Mistra 2016

Newest OBDSTAR X300 DP tablet key programmer (diagnostic tool) comes with standard version and full version. Here i will teach you how to program keys for Hyndai Mistra 2016.

Tool used: OBDSTAR X300 DP tablet key programmer full version

Procedure as follows:

Connect X300DP with Mistra

Press “START” button of Mistra to turn ignition on

Choose “immobilizer” function

Click “Hyundai” on the main menu

Choose “Hyundai V20.24” and click YES to continue

Select “Beijing Hyundai” -> “Car model” -> “Mistra”

Then click “immobilizer”

After that, press “START” button of Mistra to turn ignition off and click YES to continue

It is communicating…

Then input the security code

Confirm the input value

Next, click “ENTER” and use the top of the new remote key to press car “START” button for 5 seconds. The security light will be flashing.

Note: This step shoud be done after click “ENTER” within 5 seconds

Program success! Whether to program next one?

Click No to exit.

Done!

http://blog.obdexpress.co.uk/2016/12/15/obdstar-x300dp-program-hyundai-mistra-2016-keys/

How to use X300 DP odometer adjustment on cars

New arrival and powerful tool-OBDSTAR X300 DP  can support not only immo,OBDII,but also odometer adjustment,EEPROM/PIC adapter,ABS,TPS,SRS reset, TPMS(low tire)reset,Steering angle reset,CVT learning/Value reset, EPB+ Oil/service reset,Battery matching,Diagnosis(Japanese and Korean serials).

How to use  X300 DP odometer adjustment on cars ?Here is the example of OBDSTAR X300 DP change mileage on Cadillac ATSL 2016.

Enjoy!

Vehicle:

-Cadillac ATSL 2016

Step1: Prepare

Connect X300 DP with vechile and open X300DP

Press on START button

Step2: Choose vehicle information

Choose “Mileage adjust” option and click on GM

Choose GM V30.45 to go on

Then choose Cadillac

Choose ATS2013-

Mileage adjustment (correction)

It is communicating...

Step3: Adjust mileage

The current mileage information

Input the new mileage and press ENTER to continue

Value: 3061

It is communicating...

The mileage value at presant



Done! Successfully change mileage for Cadillac ATSL 2016

http://www.mileageprogrammer.com/obdstar-x300-dp-correct-odometer/

OBDSTAR X300 DP vs OBDSTAR X300 PRO3

Both OBDSTAR X300 DP and OBDSTAR X300 PRO3 are available at obdexpress.co.uk with standard package and full package.

Click to learn source from:

OBDSTAR X300 DP standard version

OBDSTAR X300 DP full version

OBDSTAR X300 Pro3 standard version

OBDSTAR X300 Pro3 full version

Features:

X300 DP:

Standard package function incl.: Immobilizer+ odometer adjustment+ EEPROM/PIC adapter +OBDII

Full Package Function incl.: Immobilizer+ odometer adjustment+ EEPROM/PIC adapter+ OBDII+ ABS+ TPS+ SRS reset+ TPMS(low tire)reset+ Steering angle reset+ CVT learning/Value reset+ EPB+ Oil/service reset+ Battery matching+ full system Diagnosis(Japanese and Korean vehicles)

X300 Pro3:

Standard package function incl.: Immobilizer+ odometer adjustment+ EEPROM/PIC adapter +OBDII

Full Package Function incl.: Immobiliser+ Odometer adjustment+ EEPROM/PIC+ OBDII+ EPB+ Oil/Service Reset+ Battery matching

1. Basic diagnostic system for Engine, Transmission ABS, airbag:

–OBDSTAR DP Standard Package is same with X300 pro3.

2. Full system diagnosis:

-So far OBDSTAR X300 DP Full Package can perform full system diagnosis on only Japanese and South Korea vehicles, other vehicles will be added in 2017.

-X300 DF has addtional functions (ABS+ TPS+ SRS reset+ TPMS(low tire)reset+ Steering angle reset+ CVT learning/Value reset+ full diagnostic system) while OBDSTAR X300 PRO3 does not include these yet.

 http://blog.obdexpress.co.uk/2016/12/14/obdstar-x300-dp-vs-x300-pro3/

How to read read Peugeot pin code via OBDSTAR F108+

I was adviced by forum friends to get OBDSTAR F108+ PSA, a pin code reader & key programmer for Peugeot/Citroen and DS. €169 on a website obdexpress.co.uk made me interested and purchased one. Here I share my real experience F108+ read pin code for my Peugeot.

Device i used: F108+ PSA Pin code reader & Key programming Tool (i bought it with a Xmas promotion price €169)

My car:2015 Peugeot 2008

Now I will show you how I read out the pin code:

Start form the main menu

I choose Function -> Immobilizer -> Peugeot/ Citroen/ DS V31.09

then I Choose Peugeot

Choose Read security code

When go to Read Security Code, it tells me to Turn on the ignition switch, switch off the ignition then turn on the ignition switch again;

After that, i press ENTER buttun to continue



It is reading security code…wait for a while

Done! Read out 2015 Peugeot 2008 security code immediately!

I also tried it on my friend’s C3 Picasso, it read out pin code in 3 minutes.

On a Jumper pin code read out in 1 minute.

I think the reading speed may vary from different cars, but it is really fast.

This is only a small part of functions i have tried, i will test more functions like adding keys for Peugeot/Citroen, and i will write a test report in this blog.

Waiting…

Hope my experience helps others!

http://blog.obdexpress.co.uk/2016/12/08/obdstar-f108-read-peugeot-security-code/
