OBSTAR DP Plus successfully programmed the key of Nissan Juke 2011

 I took a picture with the label on BCM, Car model and year: Nissan JUKE 2011

I called the customer today and read the label from glovebox , calculate the pincode with OBDSTAR. This is the glovebox label, and the pincode I've used is 230F142A1A6D

Zedfull can do it but also OBDSTAR X300 DP Plus can do it !!!!!!
Finally I succeeded to programming 2 keys, the old key and the new one
2 keys work on Nissan JUKE 2011, blade.



I was successful with 12 digits PINCODE, the green one in the post above.

With this pincode the Lonsdor erased the keys memory and it didn't record anything, probably software bug
OBDSTAR X300 DP Plus has too many system options of CAN for 12 digits pincode, 6 or 7 systems I don't remember exactly
There are differences of steps to foloww depending on the system you choose, if you choose the lucky one YOU WON !!!
If you want something fun use OBDSTAR for JUKE !!!

Credits to @vialli

OBDSTAR X300 DP Plus good source:

https://www.obdexpress.co.uk/wholesale/obdstar-x300-dp-plus-key-master.html

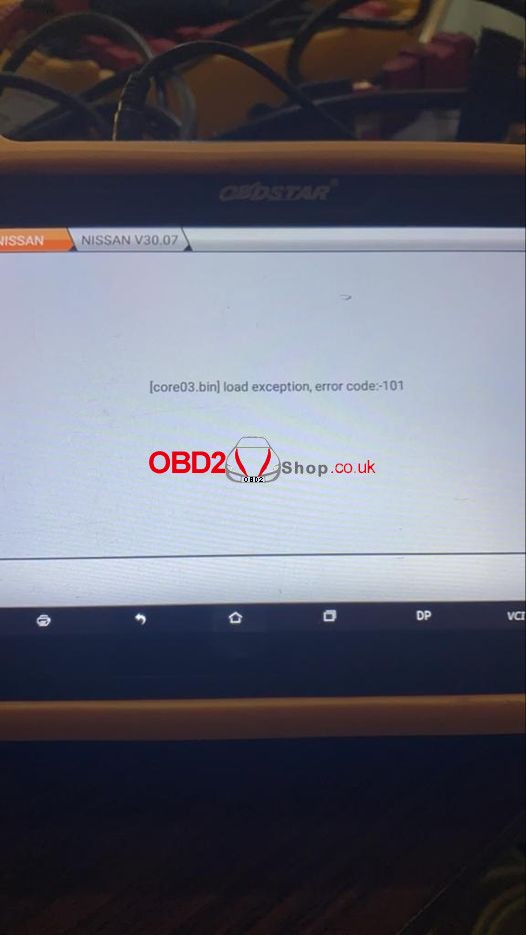

Obdstar X300 DP Plus “load exception, error code:-101” Solution



How to solve in case having the issue: “ core03.bin, load exception, error: -101” on the

Obdstar X300 DP / X300 DP Plus?



Solution

1. Click “ES file browser>> Local >> Main directory >> DP-serial number >> Resourse >> bin”;
2. Copy the file “core03.bin”to TF card or memory card.



Problem was solved!

The Obdstar X300 DP Plus has already been normal as usual.

Hope this article is helpful for you.



http://blog.obd2shop.co.uk/solved-obdstar-x300-dp-plus-load-exception-error-code-101/

Obdstar X300 DP Plus & 16+32 Cable Adds 2020 Nissan Sylphy(B18) Key OK

With the OBDSTAR Nissan/Renault 16+32 Adapter, Obdstar X300 DP Plus and X300 Pro4 are able to add Nissan Sentra/ Sylphy(B18) 2019 - proximity add keys(free Pincode), all keys lost, mandatory programming of HFMtO

In this instruction, OBD2Shop.co.uk will show you a guide on how to use Obdstar X300 DP Plus with Nissan 16+31 Cable to add Proximity for 2020 Nissan Sylphy(B18)
Process
Connect Nissan 16+32 ByPass Cable, main cable with unplugged gateway interface, press
IMMO >> Nissan >> Nissan/Infiniti V32.19 >> Manual select system >> 28 digital pincode >> Sylphy(B18) >> Proximity >> 2019- >> Add keys(no pin)

Please ensure the Internet connection is normal.

Please ensure the connection is correct.



Note:

1. Executing this function will clear all the keys of the vehicle. The deleted keys must be rematched before they can be used normally;

2. Only 2 new keys can be matched each time. If you need to match more than 3 keys, please divide them into 2 operation;

3. There must be at least one key that can start the vehicle normally.



Warning:

1. To ensure that password is successfully read, please turn on the ignition switch;

2. The device must not be disconnected during the password reading process, otherwise the module will be damaged;

3. Please check the vehicle voltage, line connection and other conditions to prevent the device from connecting abnormally in the middle.



Writing data, it’ll take about 5 minutes, please wait...



Password was read out, please record it.

It can be used when all keys lost.





Turn on the double flash, turn off the ignition switch.

Switch ignition on.

1. Long press the start button to turn off the ignition switch;

2. Turn on the hazard warning lights(double flashing lights);

3. The gear position is in P gear or neutral gear;

4. The steering column lock is in the unlocked state.



Start to read the key ID:

Place the 1st smart key to be matched(with the mark upward) flat above the ignition switch, the key end with the mark is directly above the ignition switch, and other smart keys are far away from the ignition switch.

Special note:

1. Do not move the key on the ignition switch;

2. Do not press any button of the smart key;

3. Do not insert or remove the mechanical key in the smart key.



New key number:0

Old key number:1

Current total key number:1

Note:

1. Here you need to read all key IDs to be matched;

2. New keys can only be matched at most 2 keys, the total number of keys is up to

Program success.

Press “Enter” to program next key, otherwise, press “Esc”.



Turn off the hazard warning lights to test keys.

The remote work fine, and all can start the engine.

Press “Enter”.

Note:

1. Remember to remove the 16+32 connector and restore the gateway module;

2. Connect the X300 DP Plus to OBDII port and turn on ignition switch.

Done!




This is using Obdstar X300 DP Plus to program new keys for 2020 Nissan Sylphy(B18) successfully.

https://www.obd2shop.co.uk/service/2019-nissan-sylphy-b18-add-proximity-keys-by-obdstar-1632-cable.html

OBDSTAR FIAT / ALFA ROMEO IMMO UPGRADE [ V32.63 ]

OBDSTAR ALFA ROMEO IMMO UPGRADE [V32.63]

1.Details Added:

• Add 4C/4C SPYDER 2017-2019, 2013-2016 blade key programming;
• Add auto detect model for below car models: GIULIA, GIULIETTA, MITO etc.

2.Details Optimized

• Optimized software.

Updates Now Available OBDSTAR X300 DP PLUS

OBDSTAR FIAT IMMO UPGRADE [V32.63]

1.Details Added:

• Add 500 2018-2020 blade key programming;
• Add PROMASTER RAPID blade key programming;
• Add NEW UNO 2018-2019 blade key programming;
• Add FULLBACK 2016-2020 proximity key programming;
• Add auto-detect model for below car models: 500X, DOBLO, DUCATO, FIORINO, FREEMONT, VIAGGIO etc.

2.Details Optimized:

• Optimized software.

Updates Now Available OBDSTAR X300 DP PLUS , X300 PRO4

Obdstar MS80 Add 2016 BMW F800GT key OK

How to use Obdstar MS80 Motorcycle Diagnostic Tool to program a new key for 2016 BMW F800GT? Following is a quick demonstration.

Insert the key into ignition switch.

Connect Obdstar MS80 with BMW.



Moto IMMO >> Europe >> BMW >> BMW V30.01 >> Programming keys(ID46) >> Select a blank key position, key generation





Connect P001 with MS80 key programmer, press “Enter”.



Put the new key into P001 adapter, press “Enter”.

The key is generated successfully, insert the generated key into the key slot for 10s, then use the newly generated key to start the locomotive.





The key can start the motorcycle.

Done!



Using Obdstar MS80 to program a new key for 2016 BMW F800GT motorcycle is quite easy and fast.



OBDSTAR MS80 program key for BMW F800GT 2016



Any questions welcome to contact us.

http://blog.obd2shop.co.uk/



2004 BMW 3 series 330 Mileage Correction Operation Guide

 Problem:

I have a 2004 bmw 3 series 330 I believe it to be e46 . I have only done 7 series e65 styles. I have access to digiprog datasmart 3 clone, obdstar x300m and a r270 European produced unit.  Can anyone give me any pointers on what to do. I did pull the cluster and open back to find a angled NEC chip 0719k I believe I do see one small soic eeprom chip with unfamiliar numbers on it. Not sure what I'm reading about lcm modules ? Is there a Cas that needs to be done on these?



Replied：

Option 1:

Find 35080 read through R270 which you have. There is no CAS there EWS.



Option 2:

If it's a E46 you need to change LKM, EWS and IKE
If it's a E90 you need to change CAS and IKE

You can do only dash (IKE). If you don't do LKM there is a possibility old KM returns.
If you don't do EWS your key's will have old KM in it.

2004 has a 35080 eeprom in it.

OBDSTAR X300 Pro4 review - Opel, Renault, Fiat, Peugeot

 I have bought older version (black case tablet) OBDSTAR X300 Pro4, only key programming.

My experiences...not bad, no so good...still not sure about, I'm the owner for a short time ...but..

For OPEL:
***Astra H 2009 Z17DTJ - can't read PIN from ECM, from DIS display can't, also - so I've read handly from DIS 93c56, but coding PCF7941 toogether with remote afternarket key 2 buttons for a second !!!

For RENAULT:
***Kangoo 2008 1.5dci - can read PIN but do not needed for coding...7946 remote 2 buttons aftermarket, immediately, like charm
***Clio 1.5dci_2004_UCH 93c66_PCF7936_aftermarket key 1 button_coding in a second! Also, has an fantastic function-can solve UCH collision on one click and UCH is a live again (in case you make bad coding or similar stupidity-tipically for my self

For FIAT:
***Stilo_1.6_16V_IAW5NF.T1_3K91D read file and PIN, usefull if you need to coding remote with MES or FES

For PEUGEOT:
***P206_1.4L_2002_Sagem 2000-2A_Siemens BSI-E0X, BSI-F0X read eeprom, PIN, programming KD NB11 key for a second!

That's all, will update later more...please, do the same to share experiences...!!!



Credits to @ cubica1



Have fun!



So OBDSTAR X300 Pro4 is not perfect but not that bad for that cost ...

https://mega.nz/#!kfQ0EKJC!GVRK2OiBhMY7ZTs5YYC1L-xjvl4WsnOfA1NbaDXoo9ohttps://www.obdexpress.co.uk/wholesale/obdstar-x300-pro4.html

How to solve OBDSTAR ODO Master CREDIT Balance 0?

 OBDSTAR ODO Master displays "Credit Balance 0" , What does it mean? Will it affect usage? After I click on "Recharge" it displays +365 days 199, and +730 days 398.





Solution:

This serial number is invalid and need to update by charging. Usually, please contact at your dealer to buy the update service (1 year is 199usd).

After buying the One-Year Update Service, how many credit balance I will have?

The answer is: you do not need to buy the credit balance.



For example, here is the source of OBDSTAR ODO Master One-Year Update Service:

https://www.obdexpress.co.uk/wholesale/obdstar-odomaster-one-year-update-service.html



Hope it helps!



Any question on OBDSTAR ODO Master, please feel free contact at

https://www.obdexpress.co.uk/

How to delete software for obdstar tablet(X300 DP Plus/ Pro 4)?

 obdstar X300 DP Plus / X300 Pro 4 Tablet applies to Android operation system, which is as the same as our smart phones. They share the similar method to install and uninstall the software.



Method 1: Delete a single software

1. Enter corresponding car series software interface, long press on the software name, such as Ducati V30.00.



2. After tips comes out, click on [Delete].



3. V30.00 has been deleted.



Method 2: delete software in bulk.

1. click on the house icon



2. Click on the following icon shown as below.



3. Click on [ES File Explorer].



4. Click [DP] folder.



5. Tap on [DP] check box, click [Delete].



6. Click [OK].



7. File has been deleted successfully.



Enjoy!

obdstar X300 DP Plus / X300 Pro 4 Tablet tech support is offered by www.obdexpress.co.uk

Update! obdstar odomaster adds more languages

obdstar odomaster odometer correction tool is now available with English, Italian, Russian, German, Spanish, Polish, Portuguese, French.
You are required to submit your machine serial number to your dealer, and you have one time chance to change the language you need, because the default language is English.



Contact at obexpress.co.uk to change language:

E-mail:sales@obdexpress.co.uk

Skype:obd2express.co.uk

Whatsapp:0086-18750906257

Which brands of motorcycle key programming does OBDSTAR MS80 support?

 Hello guys, if you are looking for a tool to program Motorbike keys, please read this article.

For example, if you have these Motorbike keys:

Aprilia, BMW, Ducati, Honda, Husqvarna, Kawasaki, KTM, Moto Guzzi, MV Agusta, Piaggio, Suzuki, Yamaha etc.



obdstar ms80 Motorcycle Key programmer supports the keys of these models, you can refer to the list below, there is no recommended equipment for other motorcycle key programming.



1. Ducati coverage:

https://www.obdexpress.co.uk/upload/pro/21041316182985518501.xlsx

Diavel EU3 2011-

Diavel EU4 (NO USA / CHINA) 2016-

Multistrada 1200 2010-

Multistrada 1200 ABS 2010-2014

Multistrada 1200 D-Air 2014-

Multistrada 1200 Enduro 2016-

Multistrada 1200 Pikes Peak 2015-

Multistrada 1200 S/T 2010-

XDiavel  '2016-



No need pincode: confirmed

Add keys: confirmed



2. Harley Coverage:

https://www.obdexpress.co.uk/upload/pro/21041316182985529873.xlsx

CVO 2017-

DYNA 2012-2017

SOFTAIL 2011-

SPORTSTER 2014-

S SERIES 2017-

STREET 2015-

TOURING 2012-

TRIKE 2011-



Function:

No need PinCode

Program remote

PinCode Change



3. Piaggio / Peugeot / Vespa / Gilera / coverage:

https://www.obdexpress.co.uk/upload/pro/21041316182985551275.xlsx



4. Triumph coverage:

https://www.obdexpress.co.uk/upload/pro/21041316182985553935.xlsx

No need PinCode: confirmed

Add Keys: confirmed

All key lost: confirmed



Look at obdstar ms80 full package:



Image source: https://www.obdexpress.co.uk/wholesale/obdstar-ms80-motorbike-diagnostic-scanner.html

Solution: obdstar X300M registration password and SN not match

obdstar X300M mileage programmer user feedback: when register the machine, it prompted " registered password and SN is not match". You can see that I already input the product serial number. Register password, distributor code, user name, password, email, phone number / contacts.



Image 1: obdstar X300M prompted "registered password and SN is not match".



Image 2: the screen always display "Starting".



obdstar Engineer replied:

Firstly, delete all of the files inside the TF card;

Next, download the file below:

https://mega.nz/file/Ni5WhRSa#wJPemXgZo26ZNGQIn2WIg7FqaL6rlp_Jm6dRDXvYW1E

Then, copy all of the files above and paste them into the TF card.

Finally, insert the TF card into obdstar X300m device.

obdstar X300M tech support is supplied by www.obdexpress.co.uk

Recommended tools for Audi a3 2014 mileage adjustment

 Car model and year: Audi a3 2014



Purpose: Read and write mileage



Audi A3 mileage programmer to use:

1. obdstar x300m: Failed

Test result: Tool reads correctly the mileage put the new which I want dash goes off and when bar is finished program said that this version is not supported.



2. obdstar odomaster: Working

odomaster supports a partial MQB with VDO or continental instrument type, not all of them are supported.

For Audi A3, it covers:

2003-2006

2007-2010

MQB 2014.06-

MQB 2012-2014.06



Overall, OBDSTAR odomaster is much more better with online options.
X300m with low database and without online function.



Good to know:

Not all models need to be connected to the Internet when programming mileage, only when the obdstar odomaster prompts that it needs to be connected to the Internet.



Online software is more secure; offline software is easily cracked.
