How to use OBDSTAR F100 to program keys for Ford Truck F150 F250

OBDSTAR F100 Ford/Mazda key programmer not only covers Ford cars, but also Ford trucks. Here is the instruction on programming smart keys for F150 and F250 by F-100.

It’s a manual of how to use OBDSTAR F100 to program keys by owners themselves for Ford super duty trucks F150 / F250. No longer ask the automotive locksmith or dealership to help make keys; just do it by Ford owners selves instead. Enjoy!

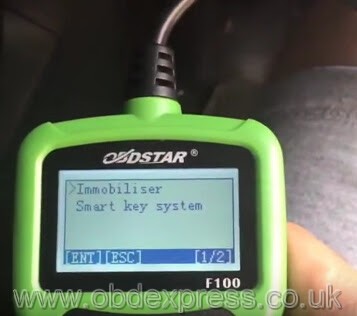

Step 1: select 1 in 2 optional systems: immobilizer and smart key system

Step 2: select the model and function you want to do:

USA Ford F150, F250 models & functions in F100:

    Immobiliser

F150 / F250 (2004-2008, 2011)

Type 1

All keys lost

Type 2

Erase keys

Program keys

F250 / F350 (2008-2010, 2010-)

Type 1

All keys lost

Type 2

Erase keys

Program keys

F150 Super Duty (2011-)

F250 Super Duty (2011-)

F350 Super Duty (2011-)

All keys lost

    Smart key system

F150 (2011-)

Erase smart key

Program smart keys

F250 (2011-)

Erase smart key

Program smart keys

F150 / F250 (2015)

Erase smart key

Program smart keys

Step 3: go to Ford F150 or F250 key programming. Take “Program keys” here.

To program keys, at least 2 keys are required.

Insert the key to be programmed and turn ignition on…

(just follow the screen instruction)

Ford key programming success. Now, 3 current keys available.

Note: if 2 working keys in hand, try the free way before buying a Ford key programmer. It will help save a lot.

once you have had the new key cut by a Locksmith or other qualified persons use the following instructions:

1. Insert an existing working key into the ignition cylinder.
   2.  Turn the ignition cylinder to ON(RUN) and back to OFF.
   3.  Remove the existing working key and, within five seconds, insert a second working
   key and turn it to ON (RUN) then back OFF.
   4.  Remove second working key and insert the new key before ten seconds have
   elapsed and turn it to ON (RUN). Leave it on for one second and turn back to OFF.
   5.  The security light will light up for three seconds to indicate that the new
   key has been successfully programmed.
