OBDSTAR ET-108 USB Inspection Camera

New arrive OBDSTAR ET-108 ET108 USB Inspection Camera, for sale €45.99 free shipping.
OBDSTAR ET-108 adopts flexible waterproof tube with HD camera to check the inner car situation which can’t reached by human eyes, playing an important role in engine clean and maintenance.
Using an ET-108 device, car problems can be quickly found and the machine damage in disassembly can be largely avoided.

OBDSTAR ET108 compare with Autel MaxiVideo MV105:
Same: Share the same function
Difference:
1) OBDSTAR ET108 price €45.99 free shipping worldwide;
Autel MaxiVideo MV105 8.5mm price €42 / 5.5mm price €60 (out of stock)
2) built in with 6 pieces of dimmable LED lights
3) 4 kinds of probes to choose

Can OBDSTAR ET108 work alone?
Confirmed: OBDSTAR ET108 can work together with OBDSTAR X300 DP and OBDSTAR DP PAD Tablet. (for how to use, skip to the next paragraph)
Under Testing: OBDSTAR engineer is now testing APP, and soon OBDSTAR ET108 can work alone by running app on windows computer / PC, then it will become a plug and play Inspection Camera.
Under development: soon, OBDSTAR engineer will test ET108 on other brands tablet instead of only OBDSTAR pad .

How to use OBDSTAR ET108 together with OBDSTAR X300 DP and OBDSTAR DP PAD Tablet?
Generally speaking, it is easy to use OBDSTAR ET108.
But here some tips to follow.
  1. To update X300 DP or X300 PRO3, after complete update, you will find a new option “Endoscope” (Shown as below picture)
  2. Click “Yes” to download software.
x300 dp endoscope
  1. Plug the USB end of OBDSTAR ET108 into the X300 DP or X300 PRO3 Key Master (there is a USB port above the Tablet).
More info

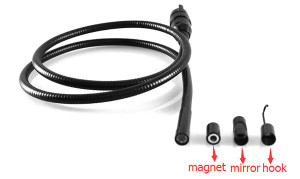

OBDSTAR ET108 package pictures:
obdstar-et-108-usb-inspection-camera-pic-4obdstar-et108obdstar-et-108-usb-inspection-camera-pic-3 - 副本
OBDSTAR ET108 specification:
Len O.D.(mm): 7.0mm
Sensor Size: 1/12″
Resolution: 640*480
Frame Rate: 30fps
View Angle: 60°
Focus Distance:30-80mm
White Comparison: Automatic
Exposure Light: Automatic
Dimmable LED: 6pcs
Operating Temperature:0℃ to 60℃
Tube O.D.(mm): 6.4mm
Tube Length:800mm
Bending Radius: 50mm
USB Cable Length: 620mm
USB Port: USB 1.1/2.0
Power Support: 5V DC via USB
Photo Format: JPEG
Video Format: AVI
Mirror/Magnet/Hook: Yes
